Tank Design Software

Tank Designs

AMETank enables the rapid configuration, design, and detailing of above-ground shop-built and field-erected storage tanks. Design calculations conform to API 650. Calculations include seismic, internal and external pressures, and wind loading.


AMETank Feature Based Design

Feature Based
Design

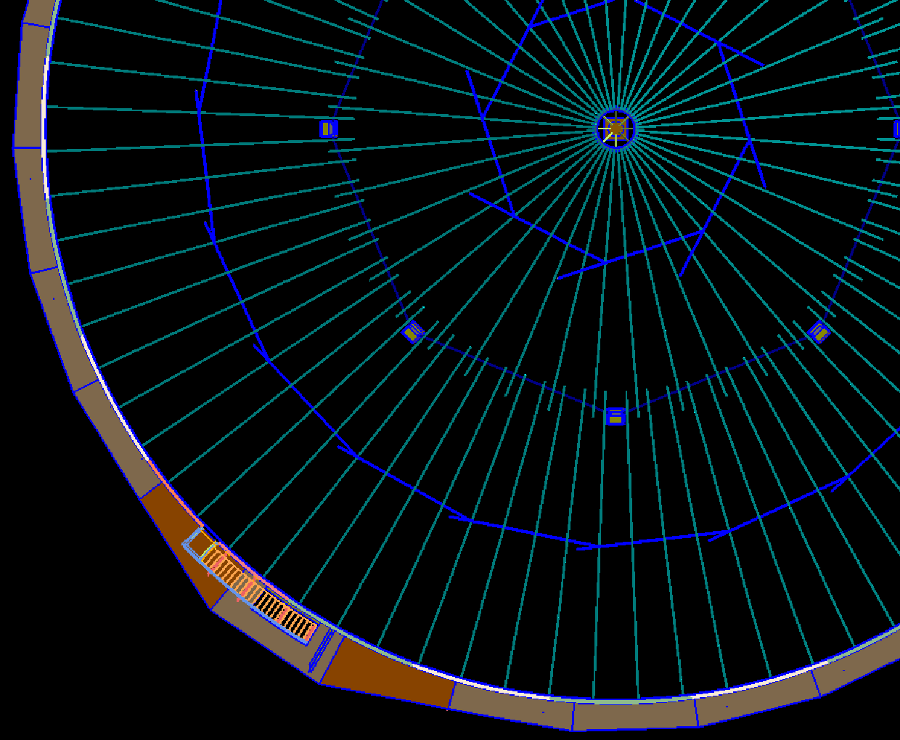

AMETank supports a fully interactive 3D graphical user interface. The configuration and layout of the tank shell, floor, roof and structure, and subsystems is facilitated through intuitive menus with options customized specifically for tank design.

Layout & Fab Drawings

Layout & Fab Drawings

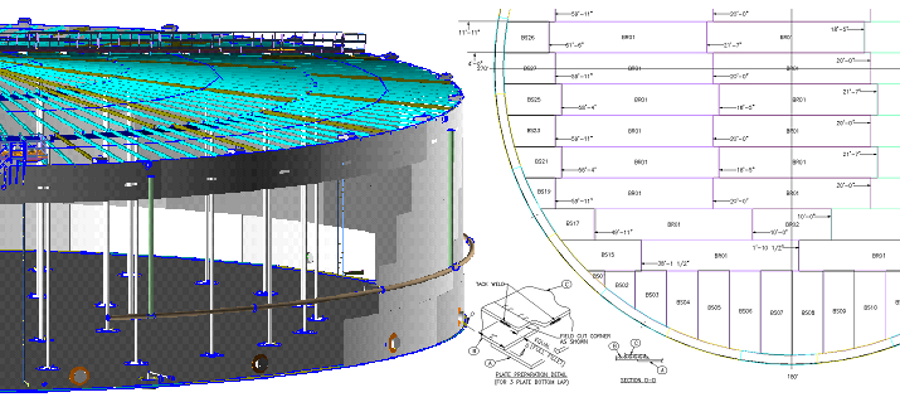

The plates layout and fabrication details are provided. Output for NC machines is supported. Detailed assembly and components fabrication drawings for all substructures, appurtenances, ladders, platforms, stairs, and any other subsystems are supported.


Rapid Configuration & Detailing

Rapid Configuration & Detailing

A complete design can be configured and detailed in less than two hours including the automatic generation of tank 3D geometry with production details, To-scale drawings, bill of material, and weight & cost reports.

Layout & Fab Drawings

Laser Scanning &
Digital Reconstruction

TechnoSoft provides services for laser scanning and digital reconstruction of tanks, terminals, refineries, and other assets. Assessments include bottom and foundation settlement, shell roundness and verticality, structural column verticality, and floating roof to shell operation. Tank calibration and generation of strapping tables is available.


Rapid Configuration & Detailing

Corrosion Inspection
& Integrity Analysis

Inspection and integrity analysis services are available. Inspection services include a large array of NDE technologies including ultrasonic, magnetic particle, liquid penetrant, visual, magnetic flux leakage, and vacuum box testing. Tank report calculations on corrosion rates, safe fill height, seismic evaluation, maximum working pressure, and other evaluations as per API 653 are supported.
